Sound Generation:
Analog Modeling Synthesis System
Synthesizer Programs:
Multi Timbres: 2 (max, Split/Dual Mode)
Maximum Polyphony: 4 voices
Structure: 2 Oscillator + Noise Generator
Multi Mode Filter (-24dB/oct LPF, -12dB/oct LPF/BPF/HPF)
EG x2
LFO x2
Virtual Patch x4
Vocoder Programs:
Maximum Polyphony: 4 voices
Structure: 1 Oscillator + Noise Generator
EG x1
LFO x2
8 Channels vocoder
Level and pan of each channel can be edited
Formant Shift function
Programs:
256 programs (192 Presets / 64 Users)
Up to eight favorite programs can be registered
Effects:
Modulation effects: flanger / chorus, phaser, ensemble (3 types)
Delay: stereo, cross, L/R (3 types)
Equalizer
Arpeggiator:
6 types (UP, DOWN, ALT1/2, Random, Trigger), Step Arpeggiator function

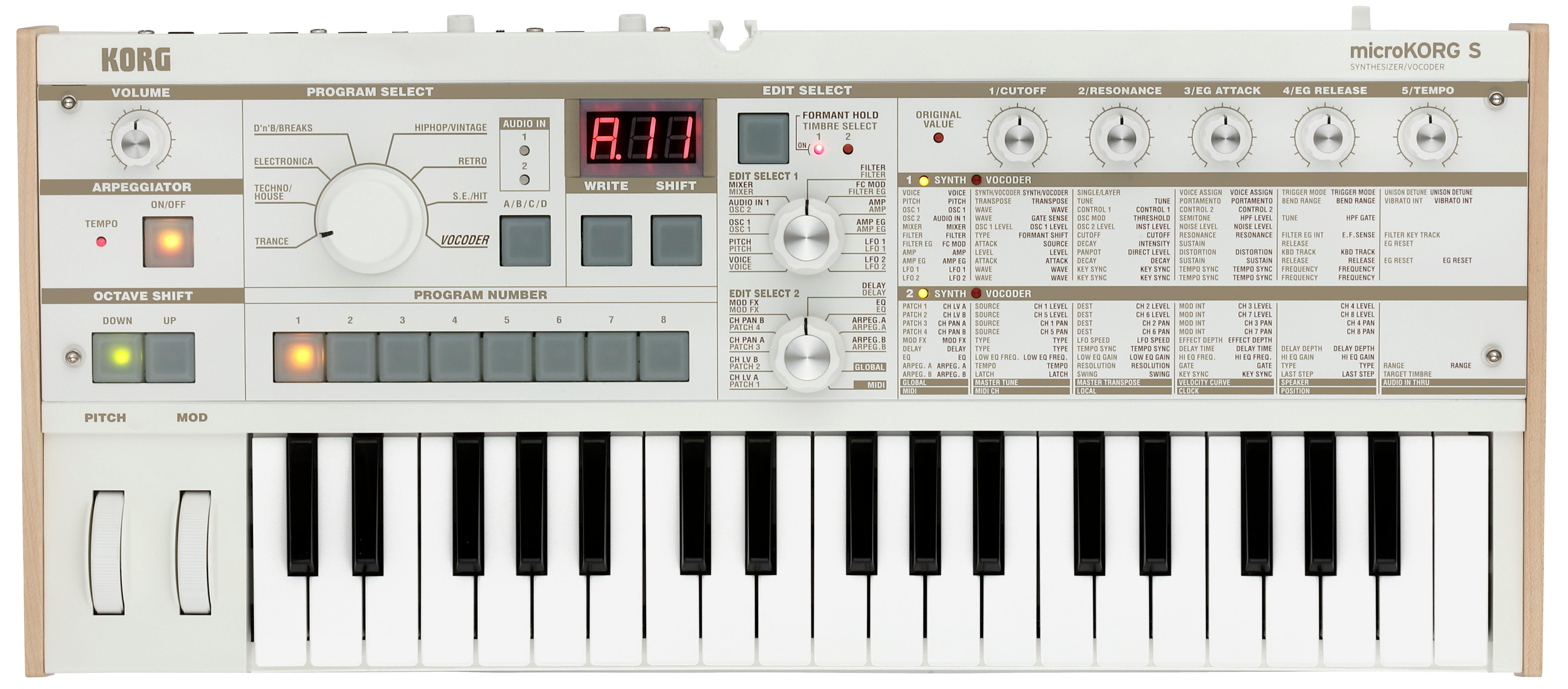

Controls:
Real-Time control knob x5, Arpeggiator ON/OFF
Keyboards:
37-keys (mini-keyboard, velocity sensitive)

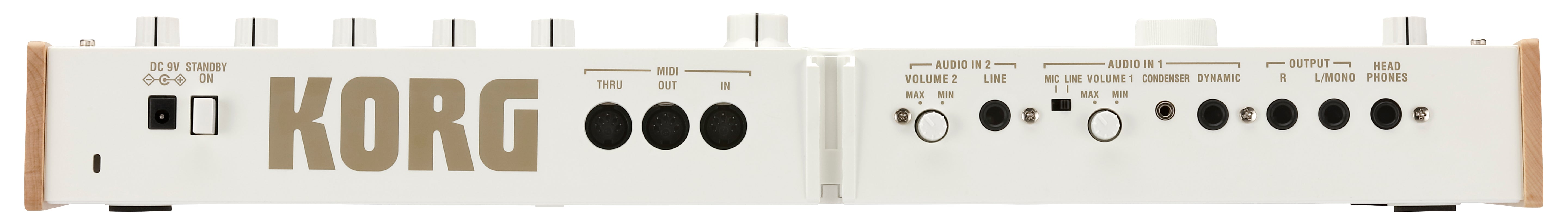

Inputs:
AUDIO IN 1 CONDENSER (with MIC/LINE switch, +5V, mini phone jack)
AUDIO IN 1 DYNAMIC (with MIC/LINE switch, 1/4” phone jack)
AUDIO IN 2 LINE (1/4” phone jack)
Outputs:
L/MONO, R (1/4” phone jacks)
Headphones (1/4” stereo phone jack)
MIDI:
IN, OUT, THRU

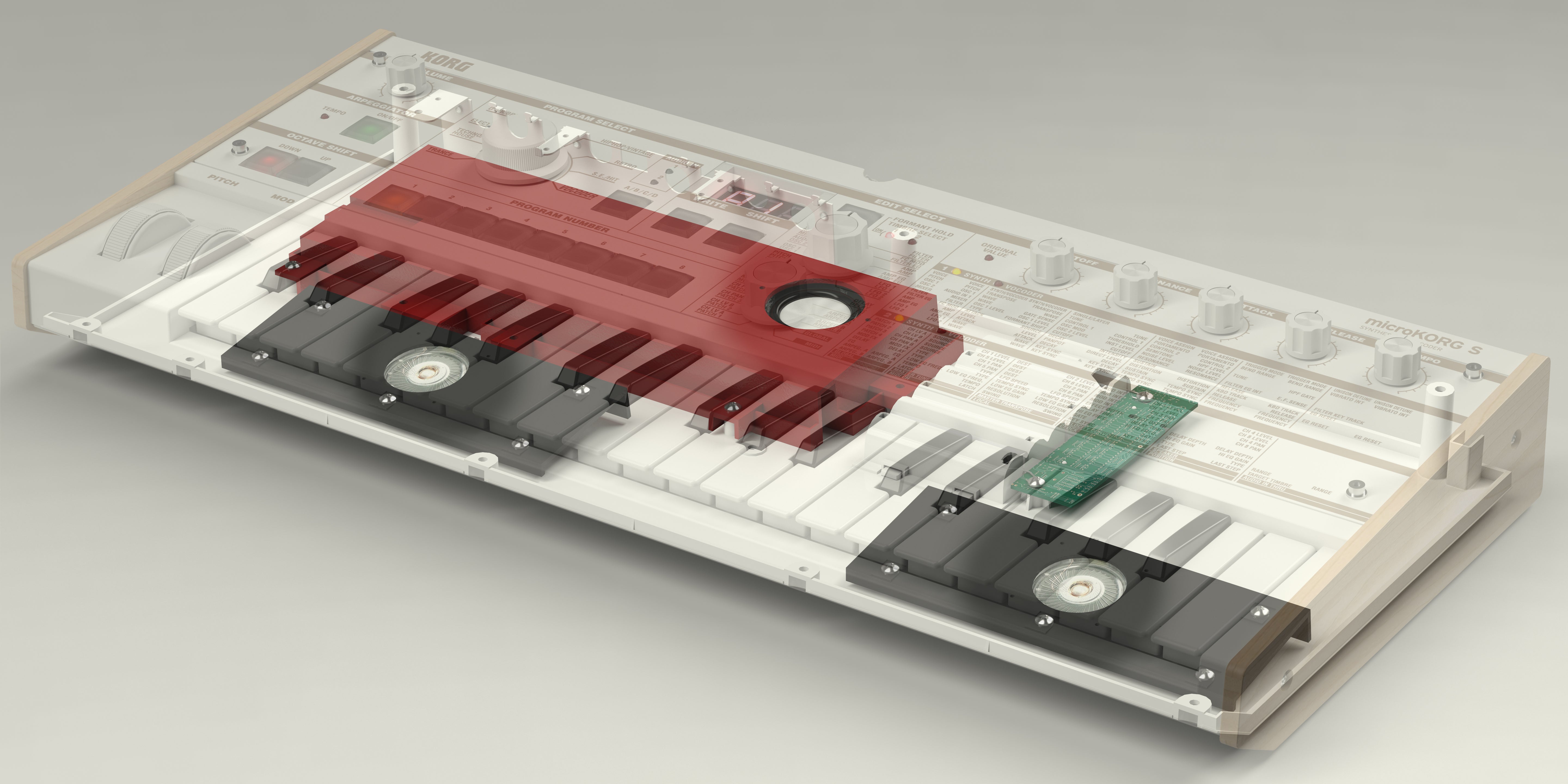

Amp Output / Speaker:
3 W / 4 cm x 1, 0.5 W / 3.5 cm x 2
Display:
3 characters x1 line with 8 segment LED
Power Supply:
DC 9V (AC adapter), or six AA alkaline batteries (sold separately)
Battery Life:
Approximately 4 hours or more (when using alkaline batteries)
Dimensions (W x D x H):
524 x 232 x 70 mm / 20.63" x 9.13" x 2.76"
Weight:
2.5 kg / 5.51 lbs. (without batteries and included microphone)
Included Items:
AC adapter (DC 9V), Condenser Microphone
microKORG S New Presets (Bank A)
Trance:
A.11 Pump Stab, A.12 Plucky Synth, A.13 UniArpo, A.14 Complicados, A.15 Growler, A.16 Heroic Lead, A.17 AMxPM Synth, A.18 ClaviPhone
Techno/House:
A.21 TriStep Jag, A.22 Metallic Arp, A.23 Build Arp, A.24 Gnaw Bass, A.25 Stab Base, A.26 Child’s Play, A.27 Plane Lead, A.28 Space Cat
Electronica:
A.31 PluckSyn, A.32 Crispy Lead, A.33 Birdy Synth, A.34 Peacebells, A.35 PanPolyfonic, A.36 Trills, A.37 Tasty Bath, A.38 Oscillation
D’n’B/Breaks:
A.41 Nasty Bath, A.42 ScaryVoxBass, A.43 Bad Bass, A.44 Jaws’ Death, A.45 Angry Tiger, A.46 Lane Drive, A.47 Rampaging, A.48 RiseFall Arp
Hip Hop/Vintage:
A.51 Disco Bass, A.52 eF eM Bass, A.53 Whip Lead, A.54 Bad Stab, A.55 Tine E.Piano, A.56 eF eM Piano, A.57 VelFiltClav, A.58 Robot Mouth
Retro:
A.61 NewWave Bass, A.62 Classic Lead, A.63 Spaceship, A.64 Major Lead, A.65 Squ Rez Lead, A.66 Lofi Beep, A.67 Cerebellum, A.68 SimpleString
S.E./Hit:
A.71 Sickness, A.72 Light Gun, A.73 Transporter, A.74 Antiterror, A.75 Sweep Chord, A.76 Bruiser, A.77 Haus Chord, A.78 Love Parade
Vocoder:
A.81 Vox Chord, A.82 Singer, A.83 LadyVoyce, A.84 DemonVoyce, A.85 Crystalize, A.86 Chopping, A.87 Simple Echo, A.88 Coil Spring
