PERFORMANCE MIXER KIT

$249.99 USD

Tax excluded. Shipping calculated at checkout

SKU: NTS4MIXER

A compact performance mixer built for modern setups.

The NTS-4 is the fourth model in the Nu:Tekt Synthesizer series—a compact DIY performance mixer kit that’s easy to assemble and designed for seamless hardware integration. Featuring six channels, built-in effects, USB audio/MIDI connectivity, and audio interface functionality, it lets you connect, mix, and perform with volca units, NTS instruments, modular gear, desktop synths, and other gadget-style instruments, making it the perfect centerpiece for live performances and DAWless setups.

Quantity:

Warranty

Products purchased directly from KORG US qualify for protection under warranty. Read terms: Limited Warranty

Shipping

Free shipping available, expedited shipping rates displayed at checkout. Read terms: Shipping Policy

Returns

We accept returns within 14 days for material or manufacturer defect. Read terms: Return Policy

NTS-4

$249.99 USD

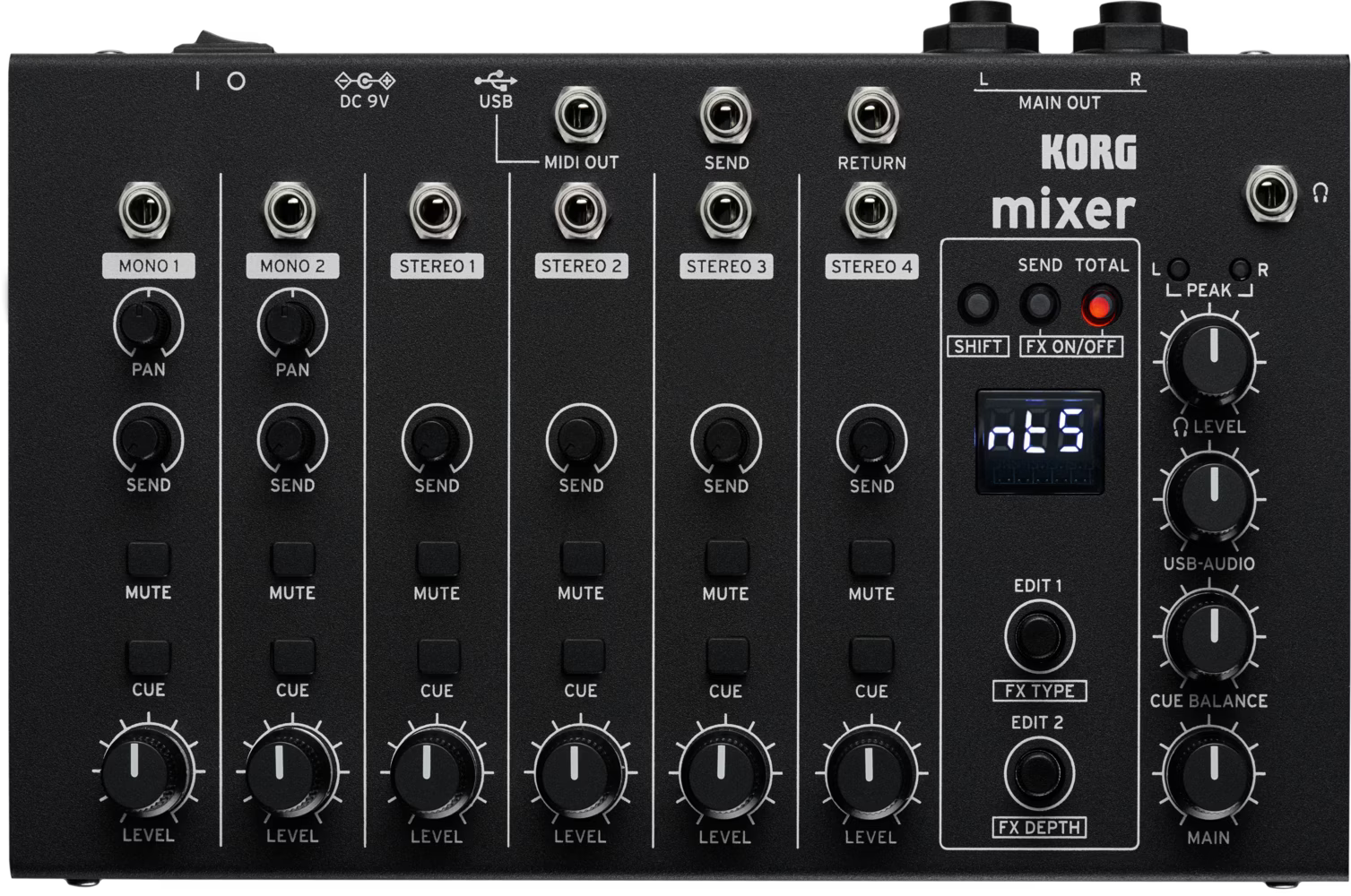

Six channels. One unified setup.

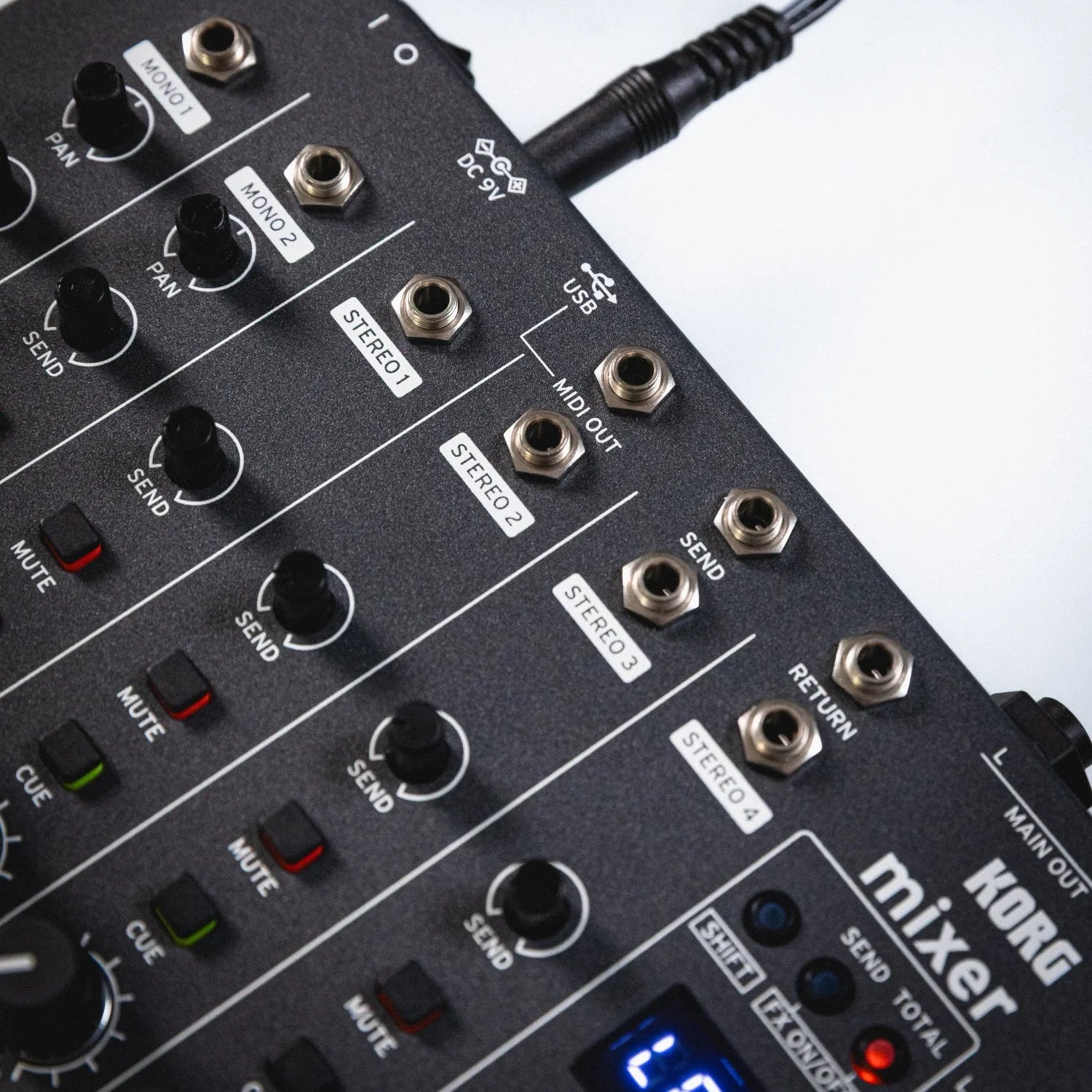

With four stereo channels and two mono channels, the NTS-4 makes it easy to combine multiple instruments into a single performance rig, supporting up to 10 total audio signals. Each channel includes level control, mute, CUE monitoring, and FX send for flexible mixing and performance control. All inputs use compact 3.5 mm mini-jacks, ideal for volca units, NTS instruments, and other desktop gear.

Designed for synths and modular gear.

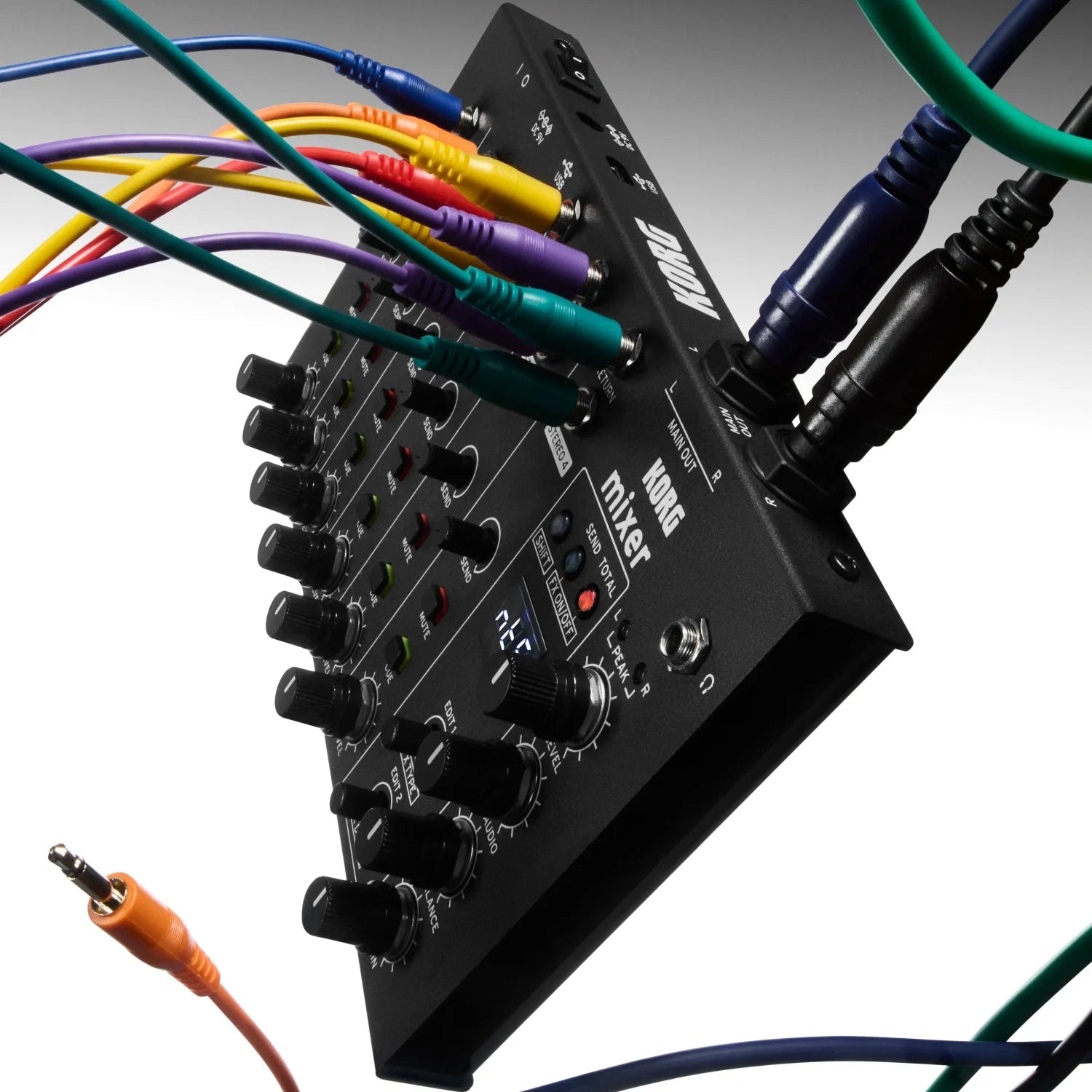

The mono inputs support both line-level and modular-level signals via a switchable attenuator, allowing seamless integration with Eurorack systems. Dedicated SEND and RETURN connections make it easy to expand your setup with external effects.

Shape your mix in real time

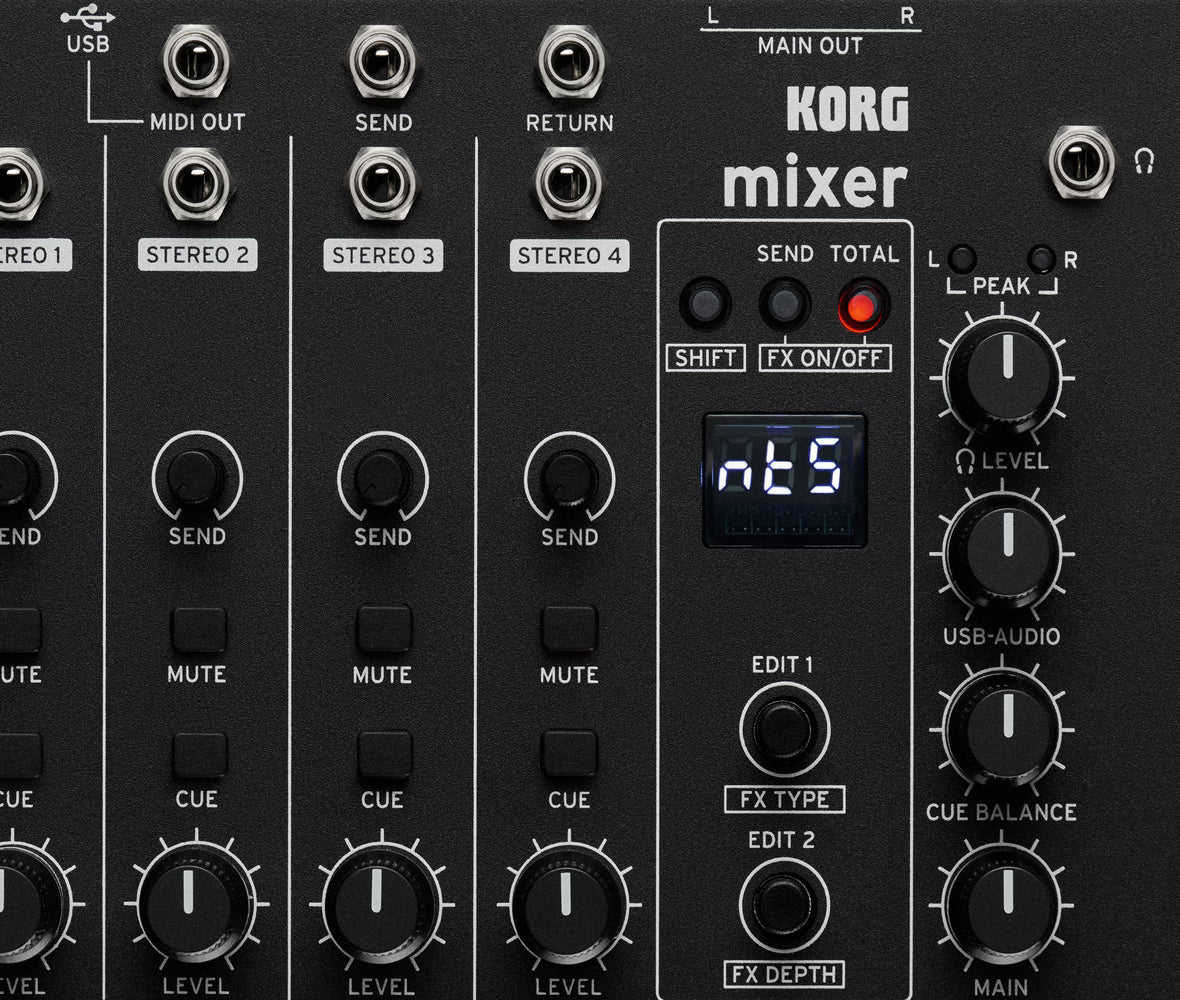

Two independent stereo effects engines provide per-channel SEND FX for spatial processing, while a master TOTAL FX section shapes the entire mix. Add delay, reverb, modulation, drive, and compression to bring depth, movement, and cohesion to your sound. Each channel includes dedicated CUE and MUTE controls. Preview sounds through headphones before bringing them into the mix, or create instant drops and transitions with responsive muting.

Seamless connection to your setup.

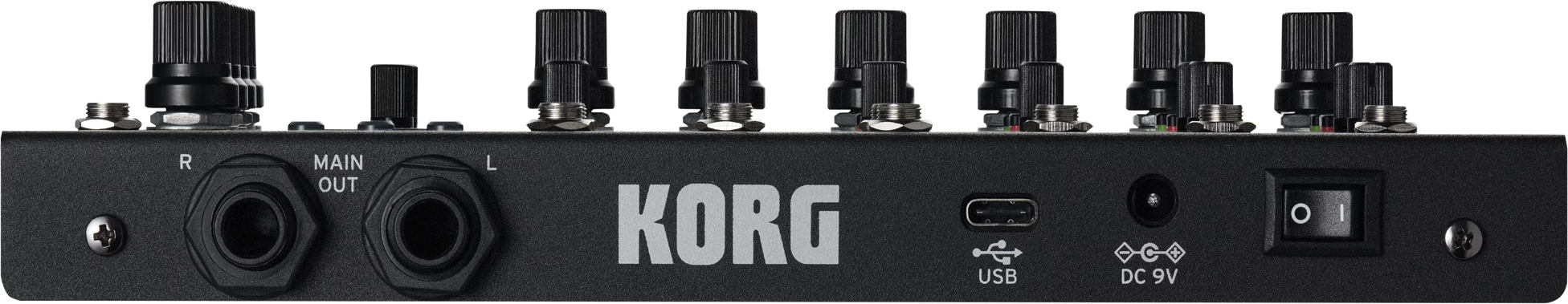

USB-C provides 24-bit audio and MIDI connectivity for recording, streaming, and DAW integration. Mix hardware and software together, or record directly to your computer or mobile device. MIDI received over USB can be routed through the dedicated MIDI OUT to control external hardware. Standard 1/4" outputs provide reliable connection to studio and live systems.

NTS-4 | Performance Mixer Kit

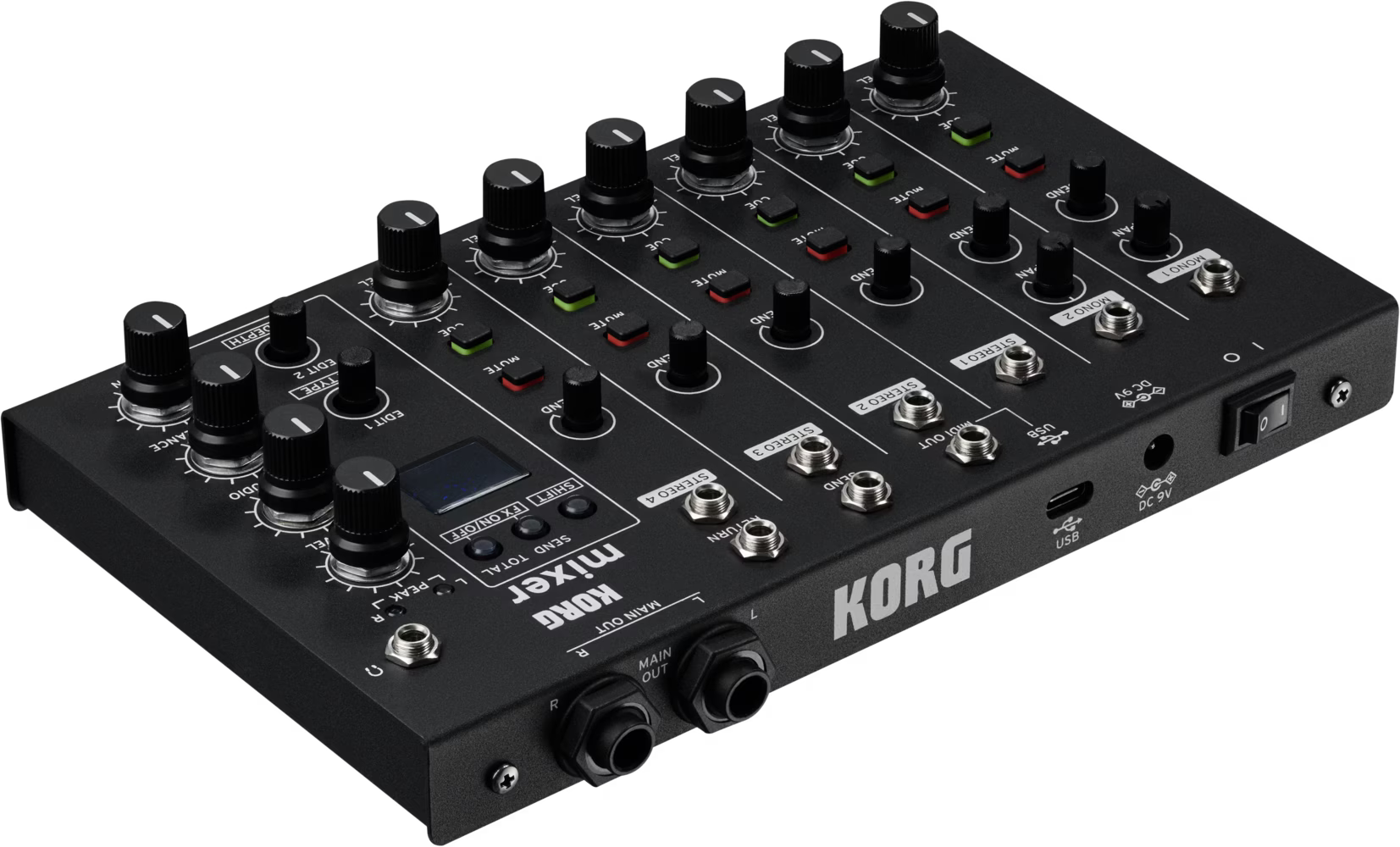

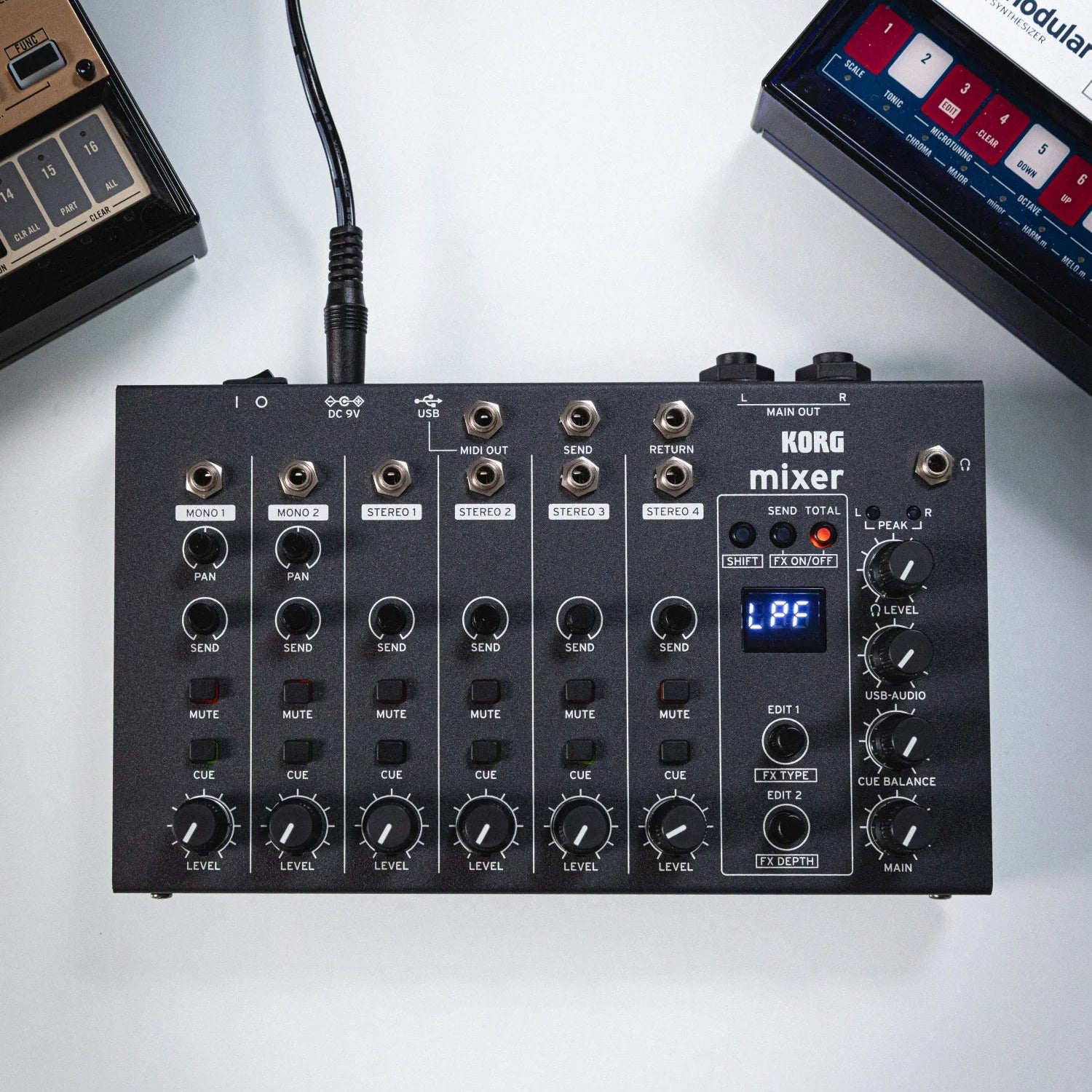

The NTS-4 Performance Mixer Kit is a compact DIY mixer designed specifically for modern hardware musicians. Whether you're building a setup around volcas, NTS instruments, modular gear, or desktop synthesizers, the NTS-4 provides a streamlined way to connect, mix, and perform from a single central hub. With six channels, integrated effects, USB audio/MIDI connectivity, and flexible routing options, it delivers powerful performance capabilities without sacrificing portability.

Built as part of KORG's innovative Nu:Tekt series, the NTS-4 combines hands-on control with expandability. Dedicated CUE, MUTE, and FX Send controls on every channel make it easy to shape your mix in real time, while dual effects engines and master processing tools add depth, movement, and character to your sound. From live performance to studio production, the NTS-4 helps simplify complex setups so you can stay focused on creating music.

SPECIFICATION

Mixer
● Type: 10-channel analog mixer
● Channels: 2 mono, 4 stereo
● Channel Controls
○ Mono Channel: Volume, Mute, Cue Send, Pan, Fx (Aux) Send Level
○ Stereo Channel: Volume, Mute, Cue Send, Fx (Aux) Send Level
● Master Controls: Main output Level, Cue Balance, USB Audio output Level, headphone Level

I/O
● Mixer Input:
○ Mono In * 2 (3.5mm mono)
○ Stereo In * 4 (3.5mm stereo)
● Audio Output:
○ LINE Out (6.35mm * 2)
○ Headphone Out (3.5mm stereo)
● AUX:
○ AUX Send (3.5mm stereo)
○ AUX Return (3.5mm stereo)
● MIDI: MIDI Out (3.5mm stereo)
● USB-C (Power, Audio, MIDI)
● DC 9V

USB Audio
● 2 input/2 output
● 24bit/48kHz

FX
● Send: Delay, Ping Pong Delay, Hall Reverb A, Hall Reverb B, Spring Reverb A, Spring Reverb B, Chorus
● Master: LPF, HPF, Isolator, Flanger, Phaser, Decimator, Drive, Distortion, Compressor, Limiter

Physical Specs
● Dimensions (W × D × H): 195 × 125 × 38 mm
● Weight: 630g

DIMENSION

(W × D × H): 195 × 125 × 38 mm / 7.68 × 4.92 × 1.50 inches

WEIGHT

1.39lb

POWER SUPPLY

USB bus power
AC adapter (DC 9 V - sold separately)
