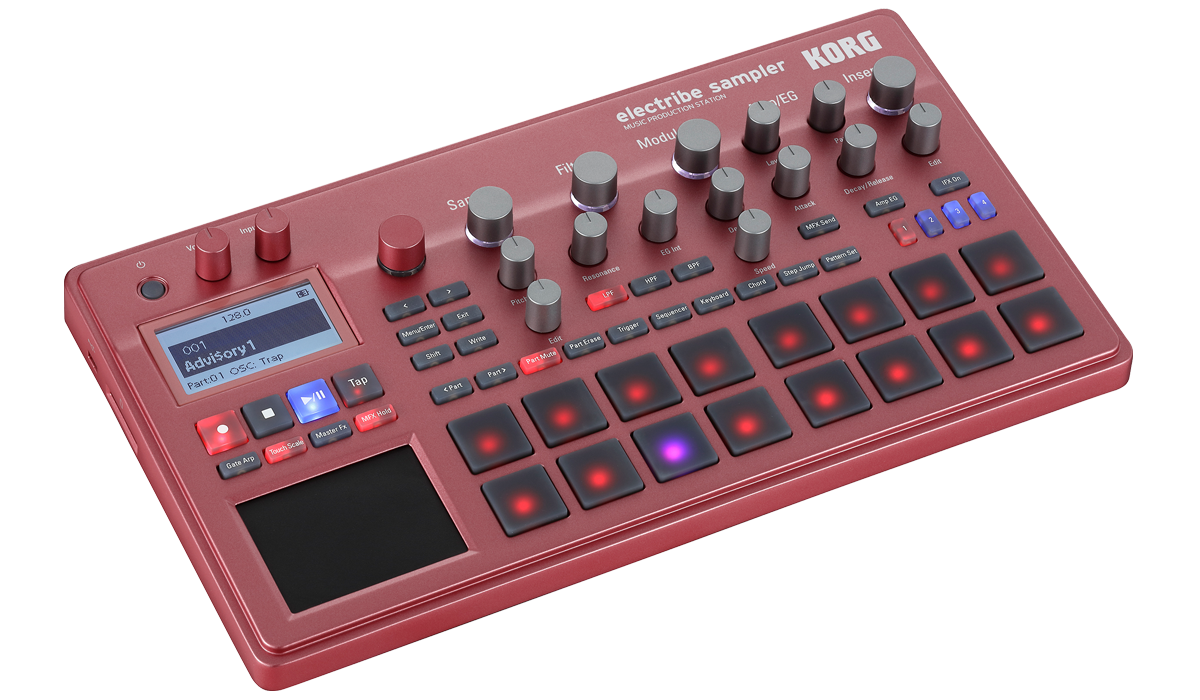

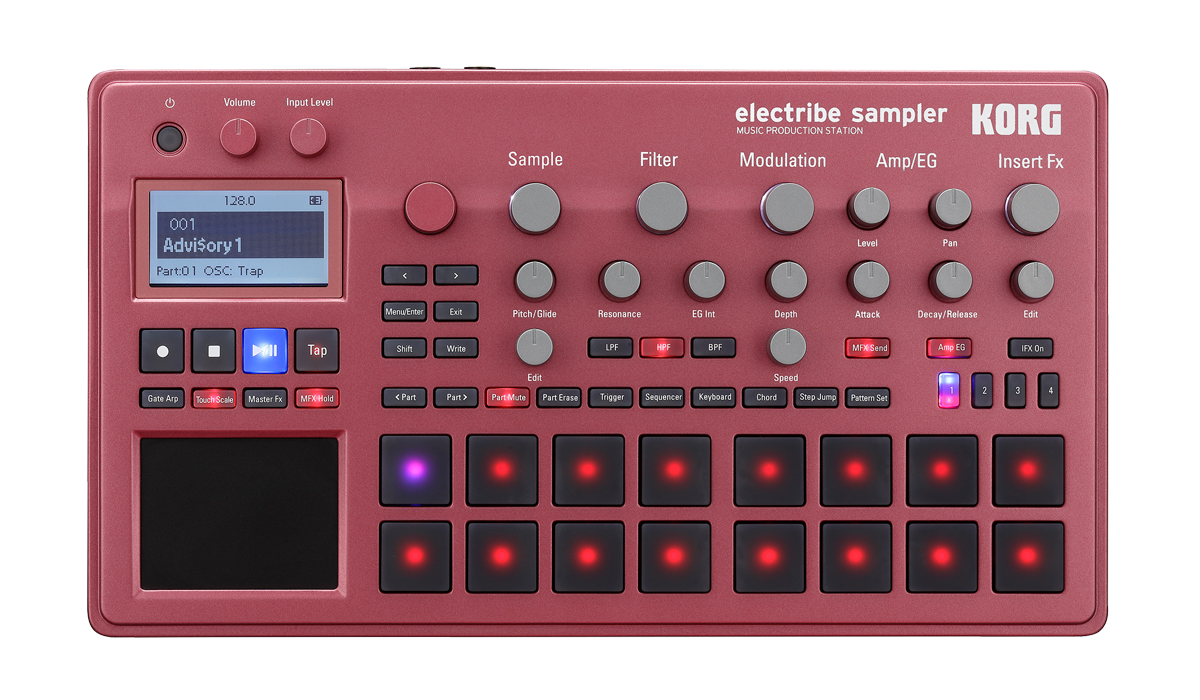

electribe sampler

Sound System:
Type: PCM sound engine + Analog modeling sound engine
Maximum Polyphony: 24 voices
*The polyphony of the entire pattern varies depending on the Oscillator, Filter, and Insert Fx type.
*Independent parameters for each voice have been simplified; four voices share the parameters of one conventional voice.
Sample: Type (920), Pitch/Glide, Edit
Sample Types:
Analog (16), Audio In (2), Kick (37), Snare (44), Clap (12), HiHat (37), Cymbal (8), Hits (33), Shots (44), Voice (31), SE (7), FX (30), Tom (10), Percussion (31), Phrase (15), Loop (22), PCM (31), User Sample (499)
Filter: Filter (Cutoff), Resonance, EG Int, LPF/HPF/BPF (3)
Modulation: Type (72), Depth, Speed
Amp/Envelope Generator: Level, Pan, Attack, Decay/Release, Amp EG On/Off
Scale Types: 35
Gate Arpeggiator Types: 50
Sampling Frequency: 48 kHz
AD/DA Conversion: 24 bit

Sampler:
User Samples: Up to 499 samples
Memory: Total maximum approximately 270 seconds (calculated as monaural)
*Regardless of the capacity of the SD card
*Including presets

Edits: Start/End Point, Loop Start Point, Tune, Time Slice, Level, Direction, Resampling

Effect:
Insert Effect: One unit (can be used on each of the 16 parts)
Type (38), Edit, Insert FX On/Off
Master Effect: One unit
Type (32), Touch Pad, Master FX On/Off, Master FX Hold On/Off

Sequencer:
Number of Steps: 16 steps x 4
Number of Parts: 16 parts (one part consists of a sound, steps, insert effect, modulation sequence, etc.)
Number of Patterns: 250 patterns (150 Presets / 100 Initial) (one pattern consists of parts, master effect, key, scale setting, etc.)
Motion Sequences: up to 24 motion sequences can be stored (for each pattern)
Groove Types: 25
Pattern Set: Up to 64 patterns can be stored
Pattern Chain: Up to 250 patterns can be chained
Export: Ableton Live project file format, WAV file format (48 kHz, 16 bit)
Event Recording: up to 100 files can be saved

Trigger Pads:
Number of Pads: 16 pads (Velocity sensitive)
Modes: Trigger, Sequencer, Keyboard, Chord, Step Jump, Pattern Set

Touch Pad:
Modes: Gate Arp, Touch Scale, Master FX

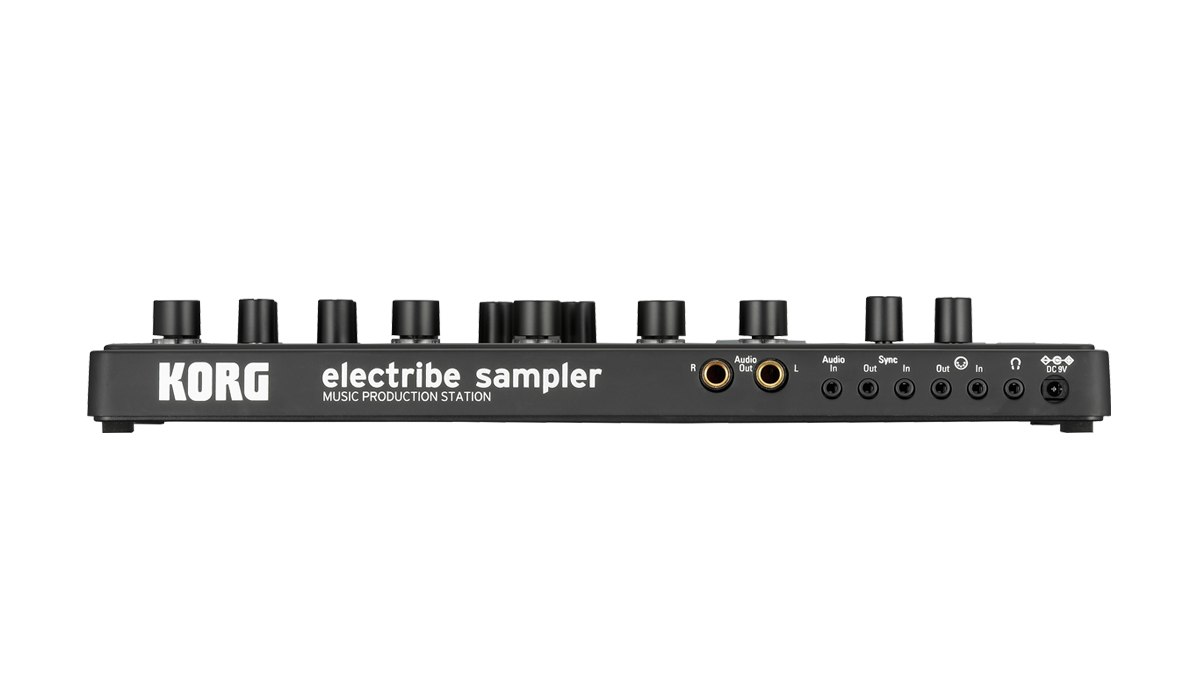

Connectors:
Audio:
L/Mono, R Output (Standard phone jack)
Headphones (Stereo mini jack)
Audio Input (Stereo mini jack)

MIDI: In, Out (Use an included MIDI adapter cable)

USB: Type micro B

Sync: In, Out (Stereo mini jack)

External Storage Device: SD Card (512 MB -- 2 GB), SDHC Card (Up to 32 GB)

Power:
Power Supply: AC adapter (DC 9V) or AA battery x 6 (Alkaline battery or Nickel metal hydride battery)
Battery Life: Approximately 5 hours (Power Saving: ON, with Nickel metal hydride battery)
Current Consumption: Less than 500 mA

Chassis: Zinc die cast

Dimensions (W x D x H): 339 x 189 x 45 mm / 13.35” x 7.44” x 1.77”

Weight: 1.6 kg/3.53 lbs.

Color: Metallic Red

Included Items: AC adapter (DC9V), MIDI adapter cable x 2, Ableton Live 9 lite (License card included)

Accessories:
Sync Cables SQ-CABLE-6
Gig Bag DJ-GB-1

(W x D x H): 339 x 189 x 45 mm / 13.35” x 7.44” x 1.77”

1.6 kg/3.53 lbs.
