minilogue xd

Name: minilogue xd
Brand: KORG USA Official Store
SKU: MINILOGUEXD
Price: 679.99 USD
Availability: InStock

Polyphonic Analog Synthesizer

$679.99 USD

Tax excluded. Shipping calculated at checkout

SKU: MINILOGUEXD

An evolved next-generation analog synthesizer with huge potential for sound design and performance. We wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable.

In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential. minilogue xd is a fitting successor for the original groundbreaking minilogue.

Four-voice polyphonic analog synthesis.
Equipped with a digital multi-engine
High-quality stereo digital effects
16 user oscillator slots and 16 user effect slots that you can customize
Polyphonic step sequencer controlled by 16 buttons
Joystick Controls pitch bend and modulation depth, etc
The minilogue xd is equipped with the micro tuning function featured on the monologue

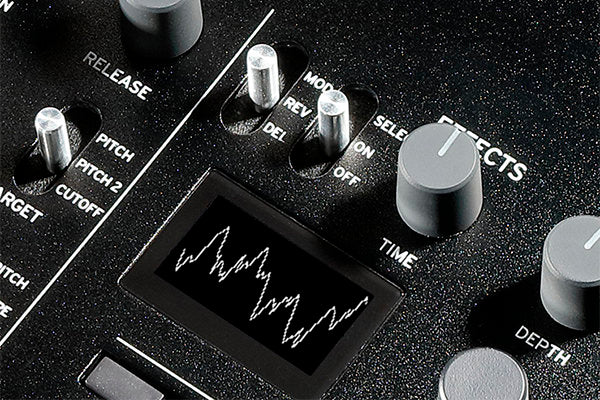

The organic EL display is now larger, and also provides oscilloscope functionality
A full complement of input and output jacks
Two CV IN jacks are provided, with voltage levels of -5V–+5V
A damper jack has been added in response to requests from artists and users
A stereo effect unit is provided at the final stage, and the output jacks are now also stereo

Quantity:

Warranty

Products purchased directly from KORG US qualify for protection under warranty. Read terms: Limited Warranty

Shipping

Free shipping available, expedited shipping rates displayed at checkout. Read terms: Shipping Policy

Returns

We accept returns within 14 days for material or manufacturer defect. Read terms: Return Policy

minilogue xd

$679.99 USD

Innovative Analog Synthesizer Circuit

The KORG minilogue xd shatters expectations for a four-voice polyphonic analog synthesizer. Building on the legacy of the original minilogue, the xd features an enhanced analog synth circuit that delivers warm pads, fat basses, and crisp leads. Its powerful voice structure includes 2VCO, MULTI ENGINE, 1VCF, 2EG, 1VCA, and 1LFO. Additional features like wave shaping, cross modulation, and a drive switch allow musicians to shape complex sounds, all while offering the ability to save up to 500 unique programs.

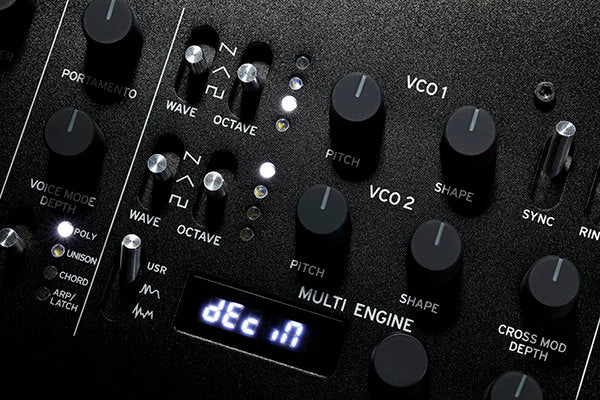

Hybrid Synthesis with a Digital Multi-Engine

Expand your sound design with the minilogue xd’s digital multi-engine. In addition to its two analog VCOs, the xd is equipped with a versatile third oscillator that offers noise generation, VPM (Variable Phase Modulation), and user-programmable slots. These elements provide a hybrid approach to synthesis, blending the richness of analog with the flexibility of digital sound for infinite creative possibilities.

Customizable Digital Effects

Take your sound to the next level with high-quality digital effects. The minilogue xd features 32-bit digital effects including modulation, delay, and reverb, which can be used simultaneously. Musicians can explore a wide range of effect variations from chorus to tape delay and even load their own custom programs through user effect slots. These professional-grade effects add depth and dimension to your synth creations.

Advanced Performance and Step Sequencing

Craft and control your music with minilogue xd’s 16-step polyphonic sequencer. Featuring both real-time and step recording, the sequencer offers advanced control with 16 step buttons for quick editing and improvisation. Motion sequencing allows for recording up to four knob movements, enabling sound design to evolve step by step. With this flexible sequencer, musicians can produce anything from dynamic melodies to intricate rhythmic patterns.

minilogue xd | Polyphonic Analog Synthesizer

The KORG minilogue xd brings powerful, four-voice polyphonic analog synthesis with the added versatility of a digital multi-engine. It combines warm, classic analog tones with modern digital possibilities, offering endless sound design options. Equipped with 200 presets, 500 program slots, high-quality digital effects, and a customizable interface, this hybrid synth is perfect for musicians and producers alike. With features like a polyphonic step sequencer, user oscillators, and built-in oscilloscope, the Minilogue XD is your gateway to unlimited creative potential.

SPECIFICATION

Keyboard
37-keys (Slim-key, velocity sensitive)

Sound Generation
Analogue sound generator + Multi digital sound generator (Noise, VPM, User)

Maximum Polyphony
4 voices

Programs
500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in.

Voice Mode
4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.

Sequencer
16-step polyphonic sequencer
Motion sequence can be used on up to four parameters

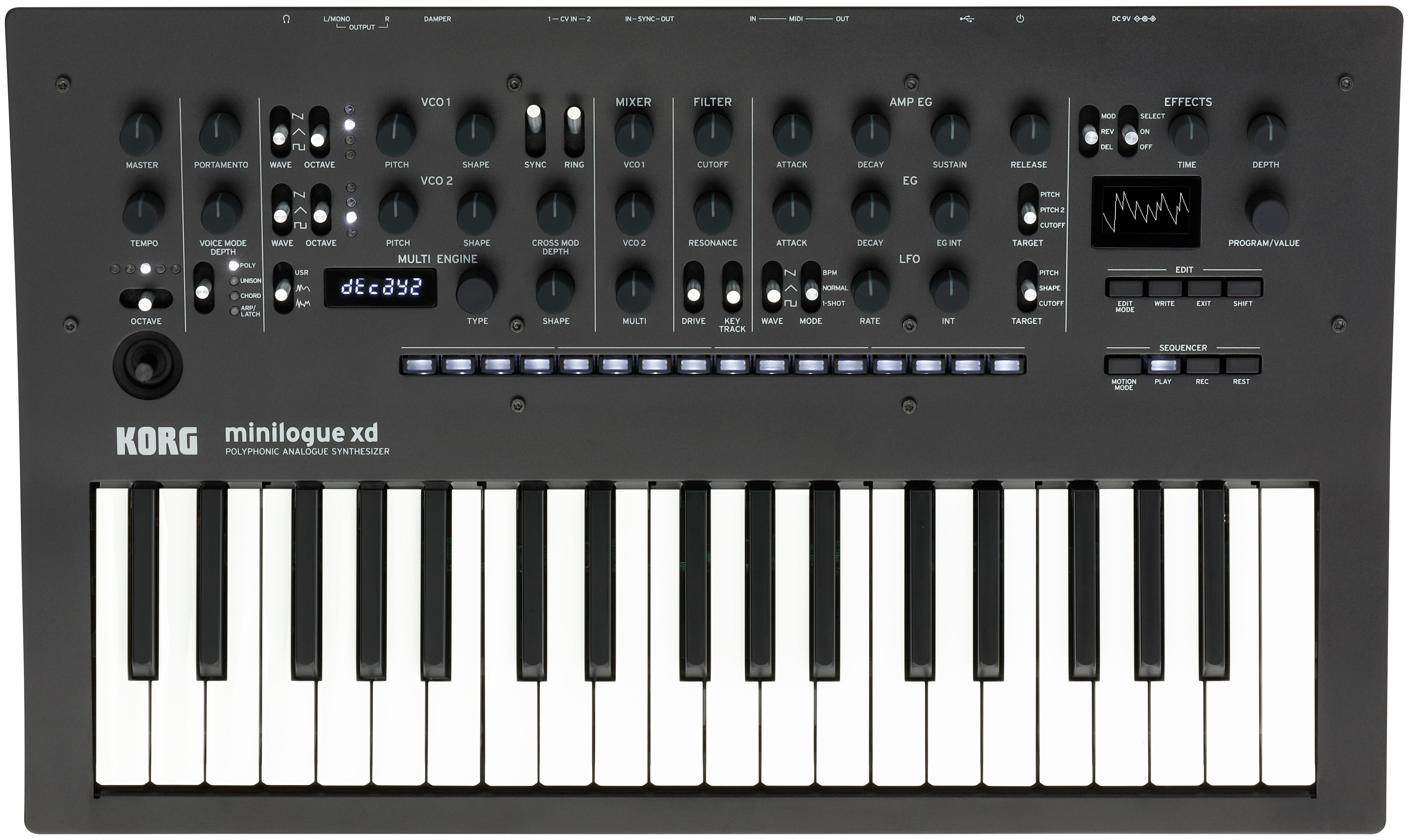

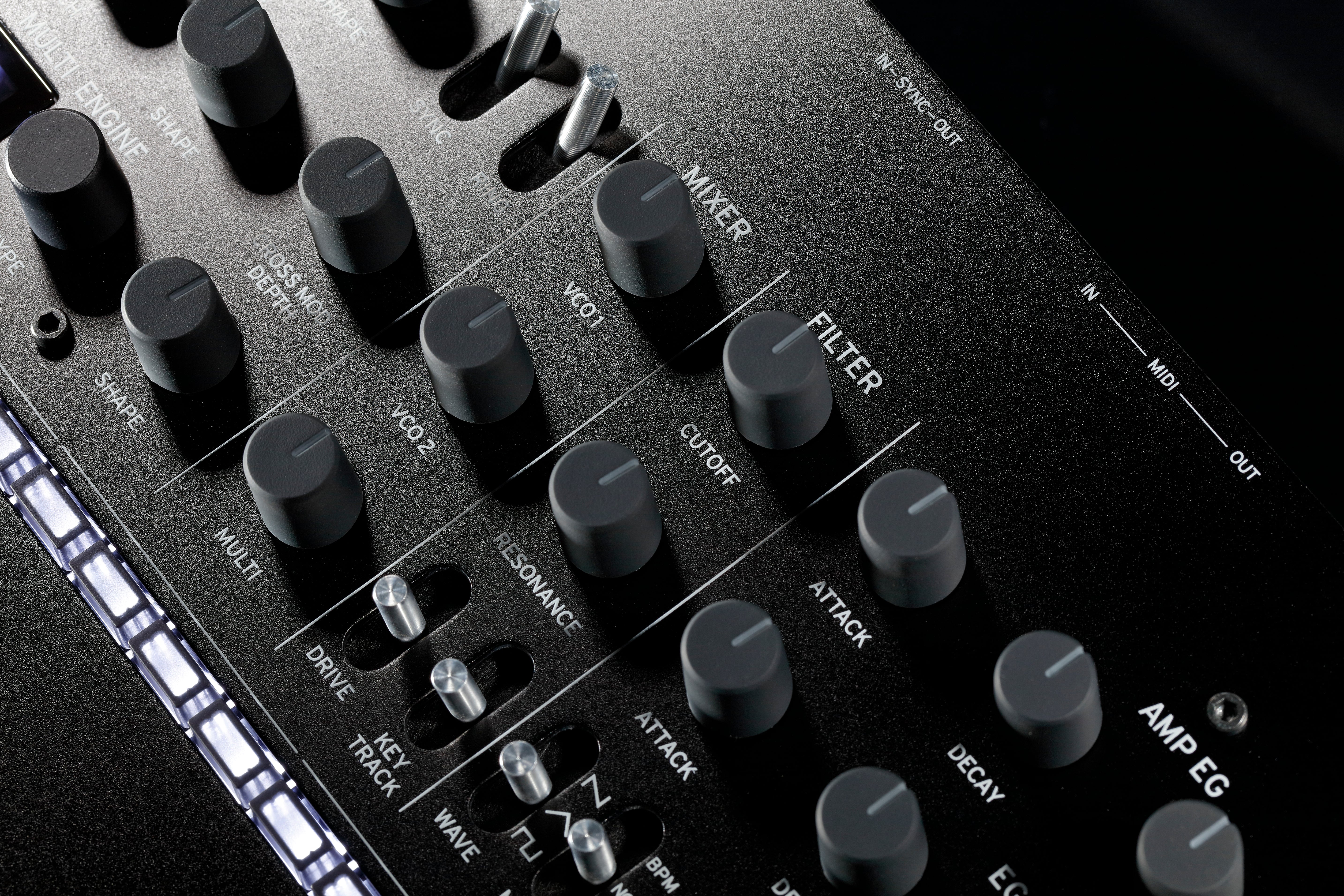

Main Synthesis Parameters
VCO1: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2: WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
MODULATION: SYNC, RING, CROSS MOD DEPTH
MULTI ENGINE: NOISE/VPM/USER, TYPE, SHAPE
MIXER: VCO1, VCO2, MULTI
VCF: CUTOFF, RESONANCE, DRIVE, KEYTRACK
AMP EG: ATTACK, DECAY, SUSTAIN, RELEASE
EG: ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)
LFO: WAVE (SAW, TRIANGLE, SQUARE), MODE (BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH,
SHAPE, CUTOFF)

Main effect Parameters
EFFECT: TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH

MULTI ENGINE
Noise Generator: 4 types
VPM oscillator: 16 types
User oscillator: 16 slots

MOD EFFECTS
CHORUS: 8 types
ENSEMBLE: 3 types
PHASER: 8 types
FLANGER: 8 types
USER: 16 slots

DELAY
DELAY: 12 types
USER: 8 slots

REVERB
REVERB: 10 types
USER: 8 slots

Controls
Joy stick that can modify different parameters for each program, PORTAMENTO knob

Display
Main: Real-time OLED oscilloscope provides visual feedback of parameter changes
MULTI ENGINE section: 7 segments x 6 digit LED display

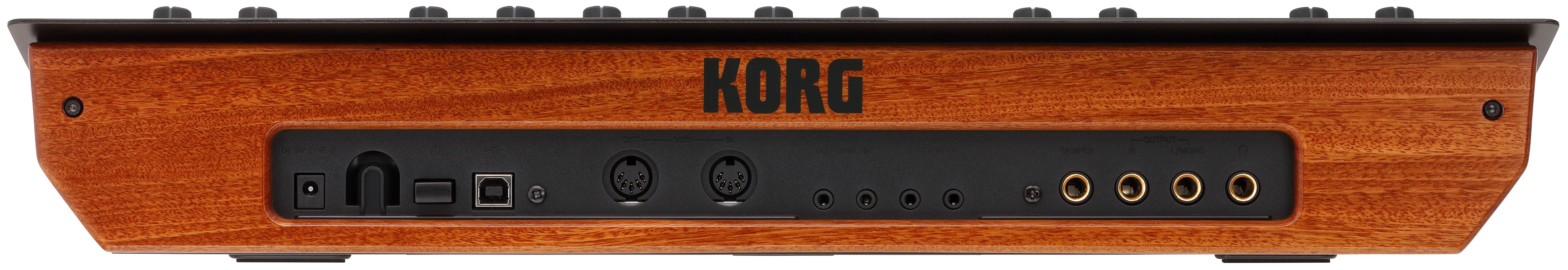

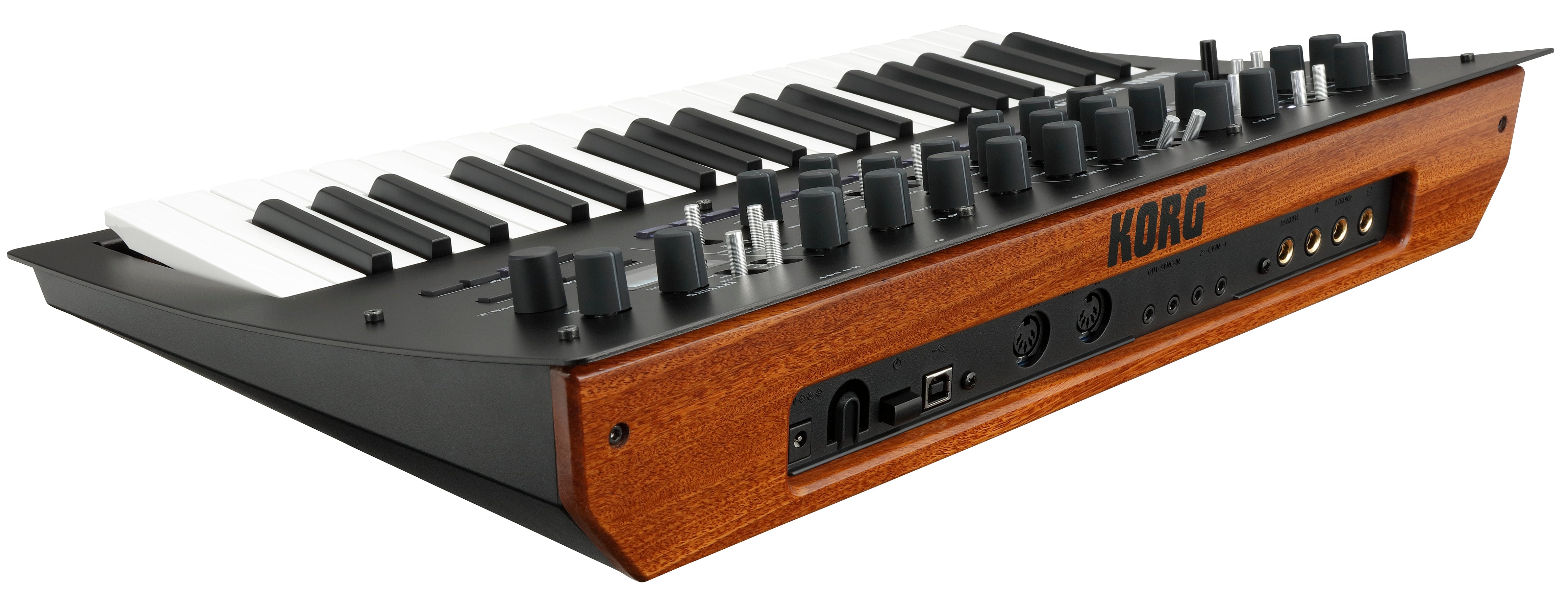

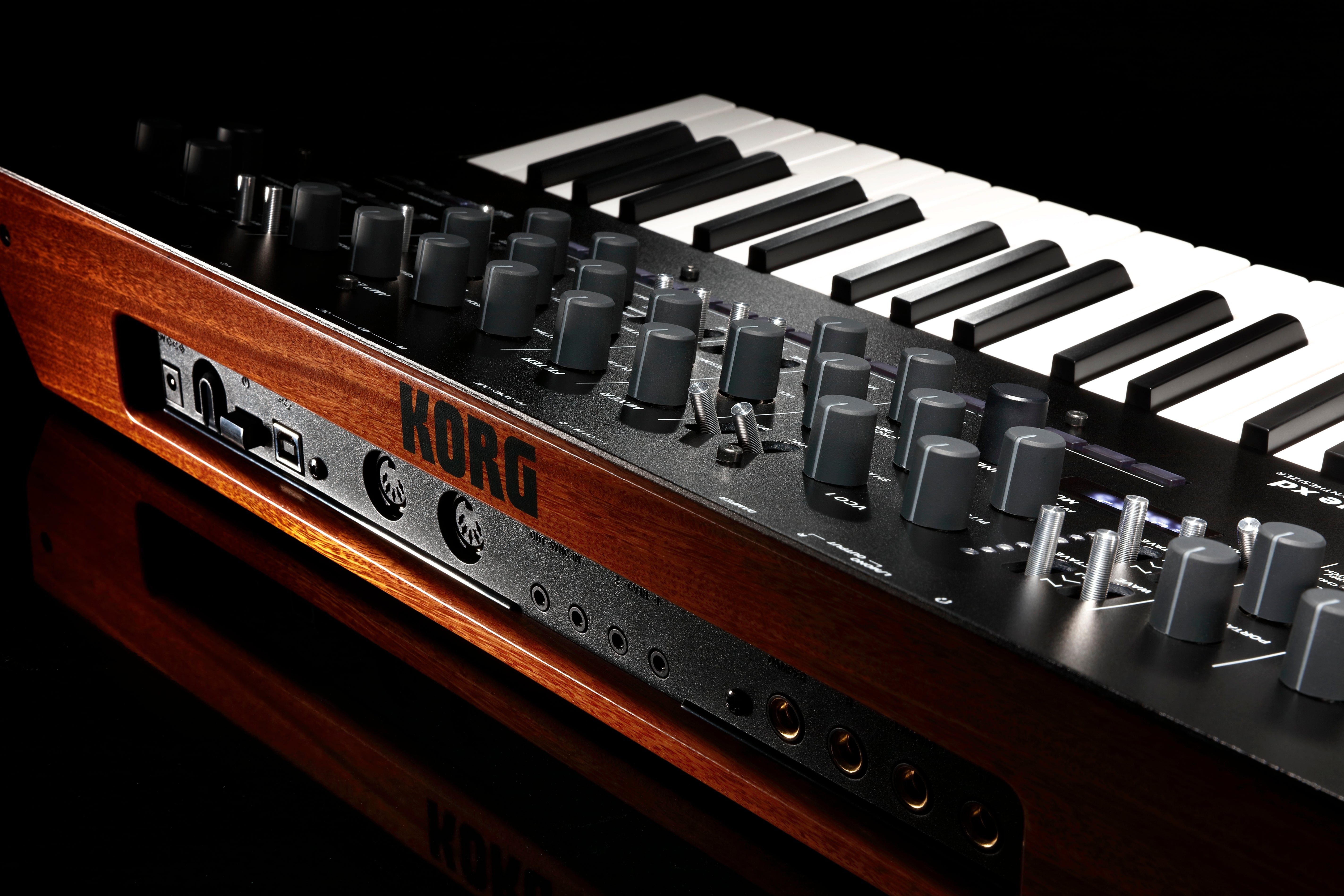

Input/Output connectors
Headphone jack (Stereo phone jack)
OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
CV IN 1, CV IN 2 jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation
mode), -3V – +5 V (CV/Gate mode)
SYNC IN jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)
SYNC OUT jack (3.5 mm [1/8"] mini jack, output level 5 V)
MIDI IN jack
MIDI OUT jack
USB B jack
DAMPER jack (half damper is not supported)

Power Supply
AC adapter (DC9 V)

Power Consumption
8 W

Dimensions (W x D x H)
500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"

Weight
2.8 kg / 6.17 lbs

Included Items
AC adapter
Accessories (sold separetely)
SC-MINILOGUE Soft shall case
SEQUENZ MP-TB1 MULTI-PURPOSE TALL BACKPACK
SQ-CABLE-6 Sync cable
DS-1H Damper pedal
PS-1 Pedal switch
PS-3 Pedal switch

DIMENSION

500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"

WEIGHT

2.8 kg / 6.17 lbs

POWER SUPPLY

AC adapter (DC9 V)
