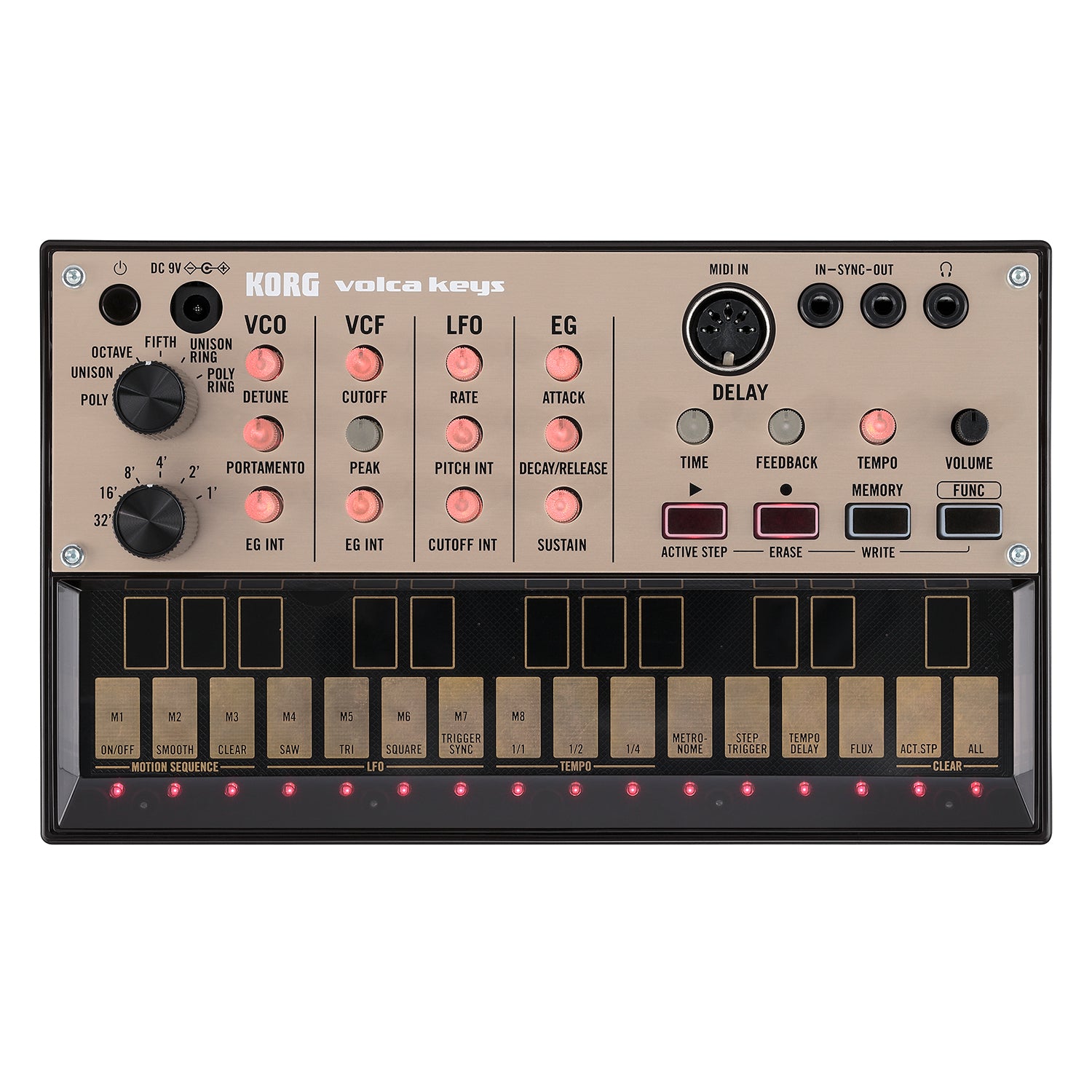

KEYBOARD:
Multi-touch Keyboard
SYNTHESIZER:
Type - Analog synthesis, Maximum Polyphony - 3, Structure - 3VCO, 1VCF, 1VCA, 1LFO, 1EG
VCO:
- Octave
- Ring Modulation
- Detune
- Portamento
- EG Int.
VCO Wave:
Sawtooth, Square
VCF:
- Cutoff
- Peak
- EG Int
VCF Type:
Low Pass Filter, 12 db/oct
LFO:
- Rate
- Pitch Int
- Cutoff Int
- Wave (Sawtooth, Triangle, Square)
EG:
- Attack
- Decay/Release
- Sustain
EFFECTS:
Delay - Time, Feedback, Temp Sync
SEQUENCER:
Number of Parts - 1
Number of Steps - 16
Number of Recording Patterns - 8
CONNECTORS:
- Audio Output: Headphones (3.5mm stereo mini jack)
- Sync: Sync In (3.5mm monaural mini jack, Maximum input level: 20V), Sync Out (3.5mm monaural mini jack, Maximum Output level: 5V)
- MIDI: In
POWER:
- Battery Life: Approximately 10 hours (using alkaline batteries)
- Power Supply: AA alkaline battery × 6, AA nickel-metal hydride battery × 6, or AC adapter “KA-350” (optional)
OTHERS:
- Accessories: AA alkaline battery × 6 (for verifying operation)
- Options: AC adapter (KA-350)
* All product, company, and standard names are trademarks or registered trademarks of their respective holders.
* Appearance and specifications of products are subject to change without notice.
